Detalhes da aeronave

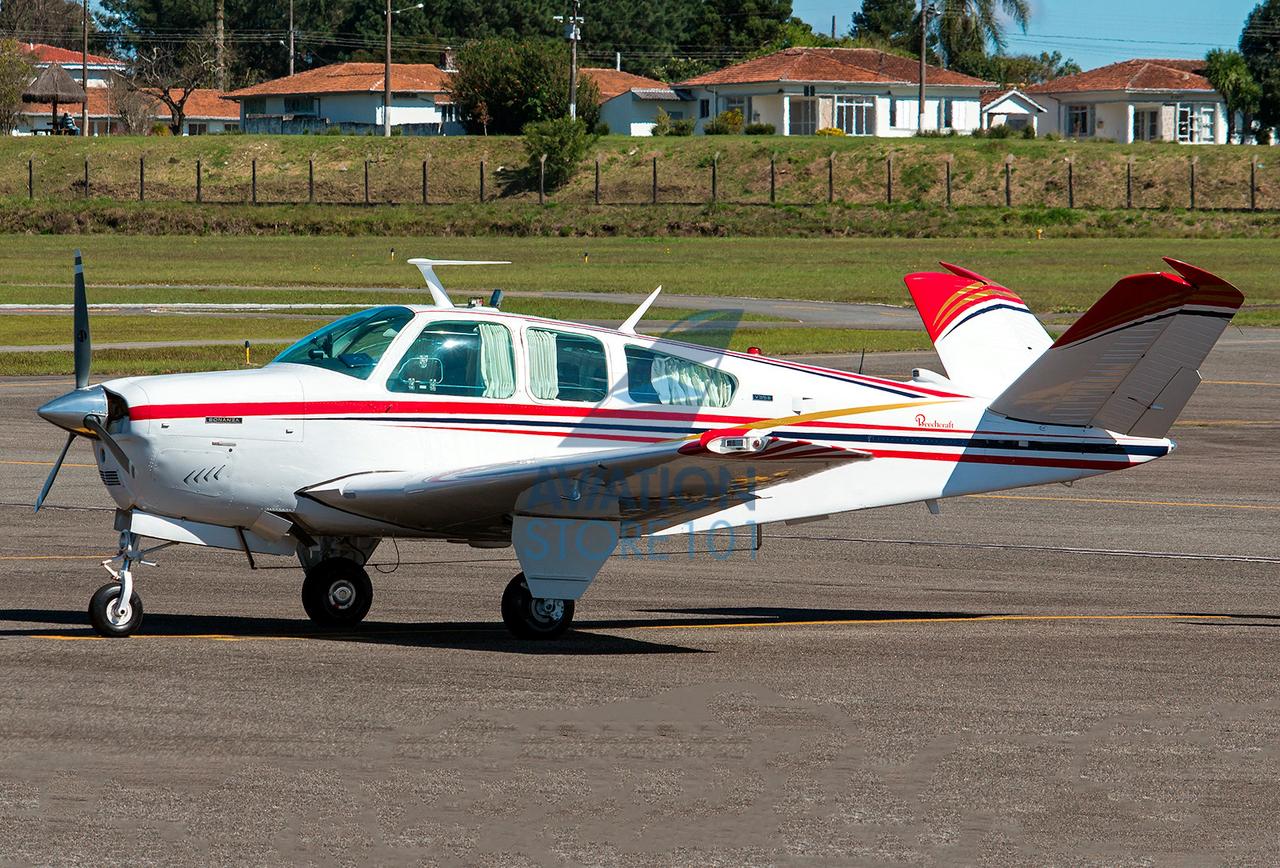

Exterior

• Exterior Height: 8 ft 7 in
• Wing Span: 33 ft 6 in
• Length: 27 ft 6 in

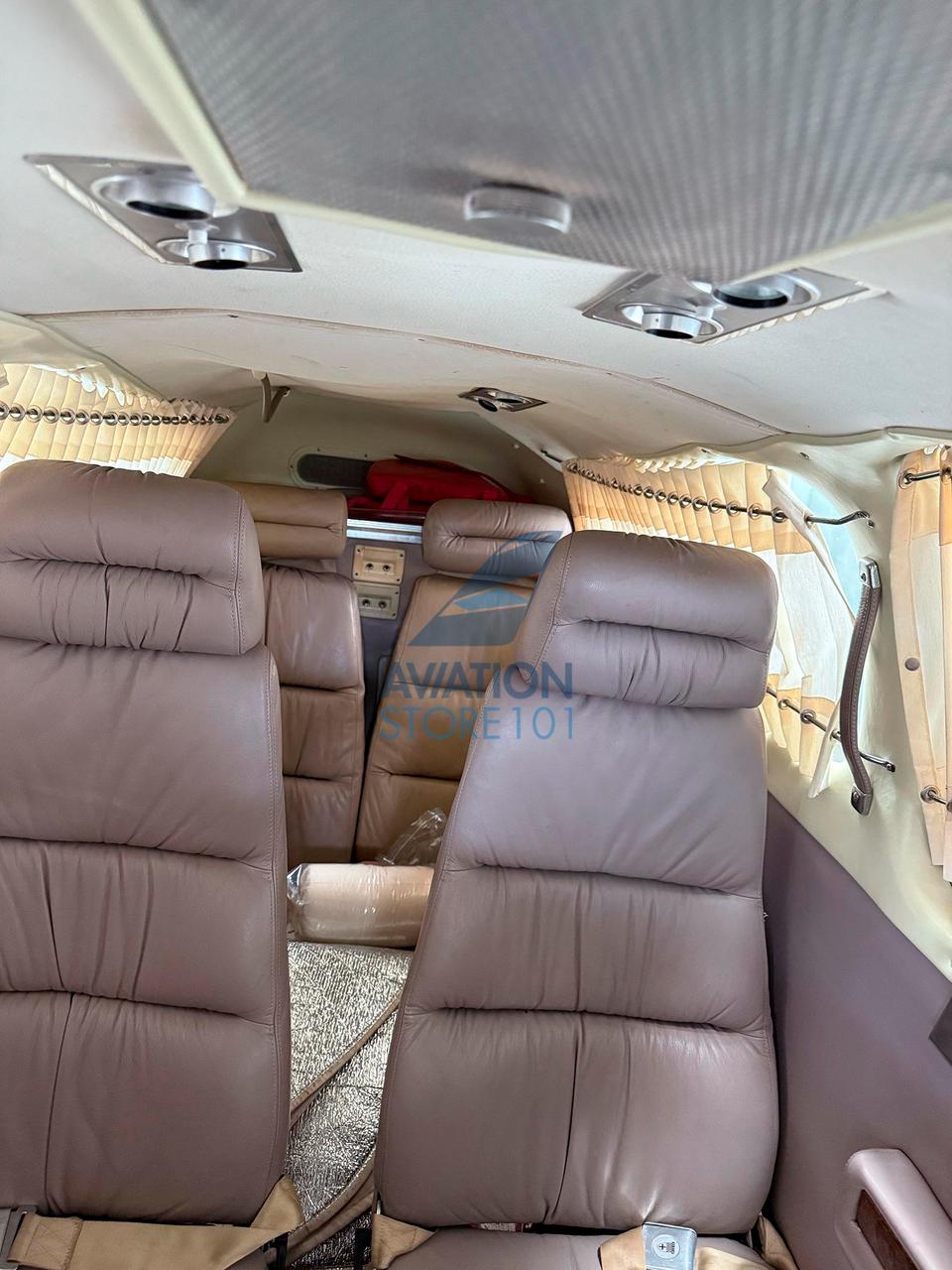

Interior

• Cabin Volume: 100 cu ft
• Internal Baggage: 37 cu ft

Operating Weights

• Max T/O Weight: 3650 Lb
• Max Landing Weight: 3650 Lb
• Operating Weight: 2700 Lb
• Fuel Capacity: 444 lbs Lb
• Payload Useful: 1405 Lb
• Payload W/Full Fuel: 519 Lb
• Max Payload: 950 Lb

Range

• Max Range: 660 nm
• Service Ceiling: 18500 ft

Distances

• Takeoff Distance: 2167 ft
• Balanced Field Length: 2200 ft
• Landing Distance: 2417 ft

Performance

• Rate of Climb: 1015 fpm
• Max Speed: 174 kts
• Normal Cruise: 169 kts
• Economy Cruise: 137 kts
• Cost per Hour: $ 258.46

Power Plant

• Engines: 1
• Engine Mfg: Continental
• Engine Model: IO-550-B
