Detalhes da aeronave

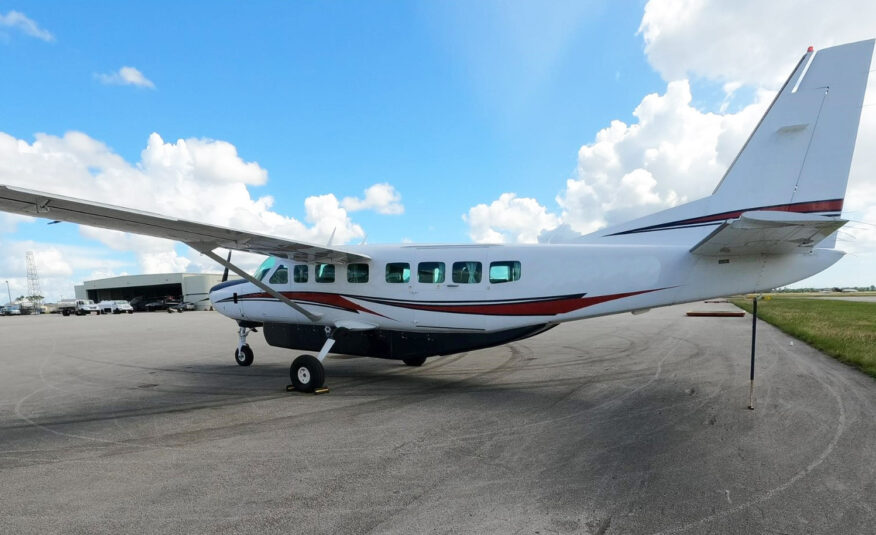

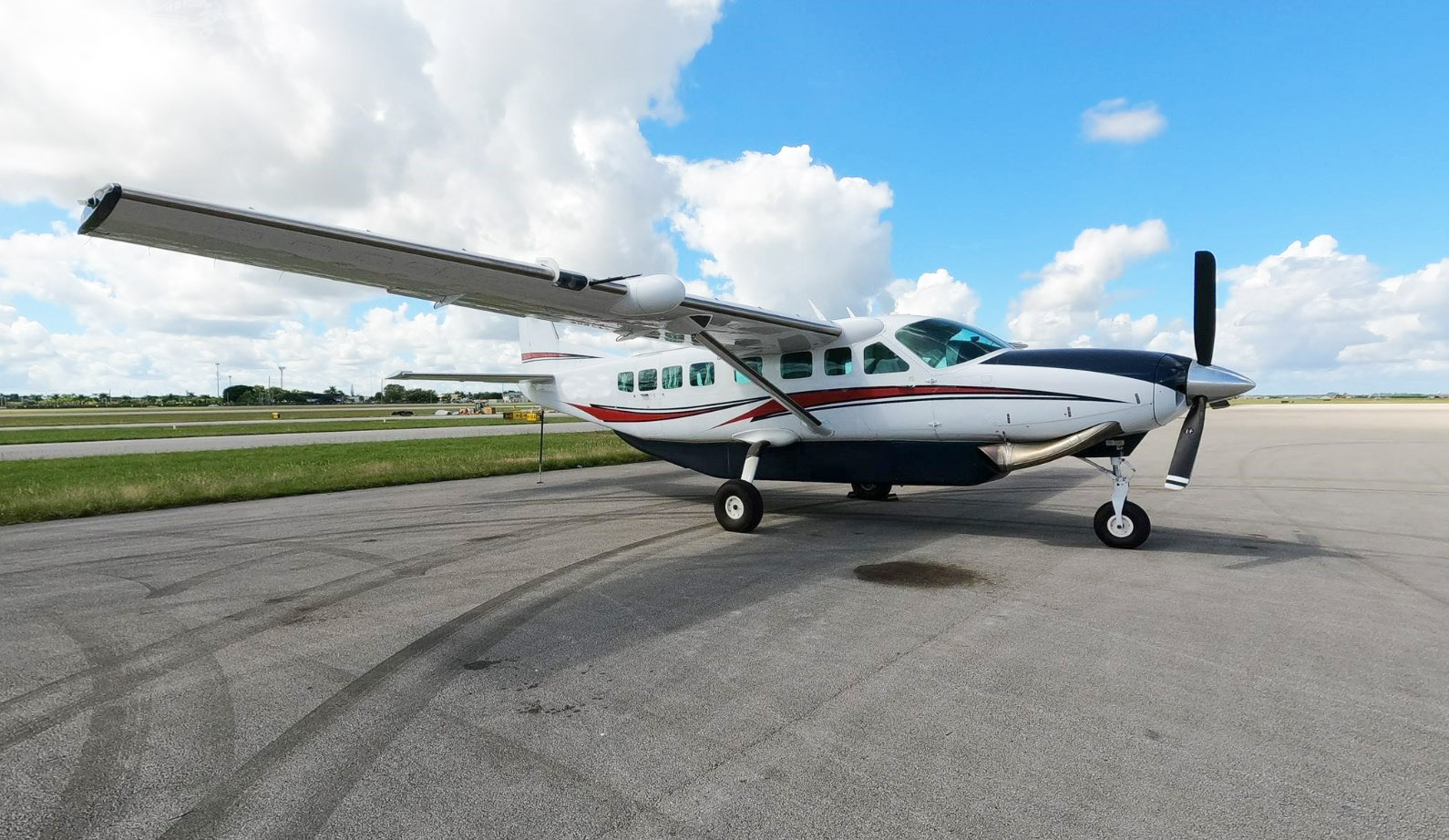

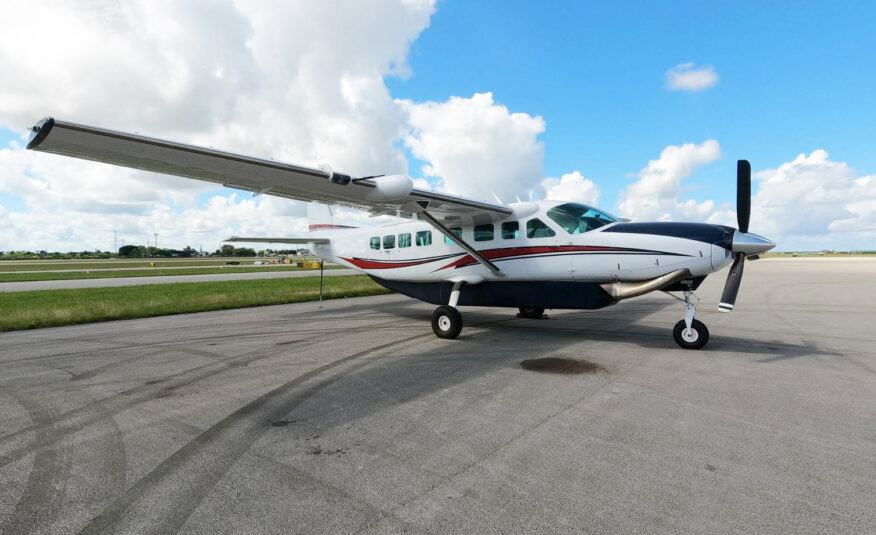

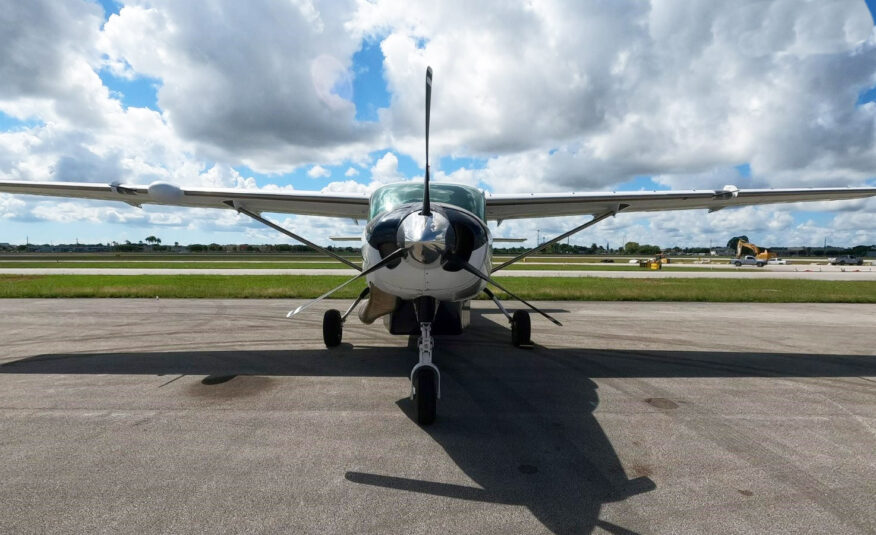

Avião Turbo Hélice Cessna Grand Caravan 208B – Ano 2009 – 3.173 Horas Totais

Add to compare

Visão geral
Especificações técnicas

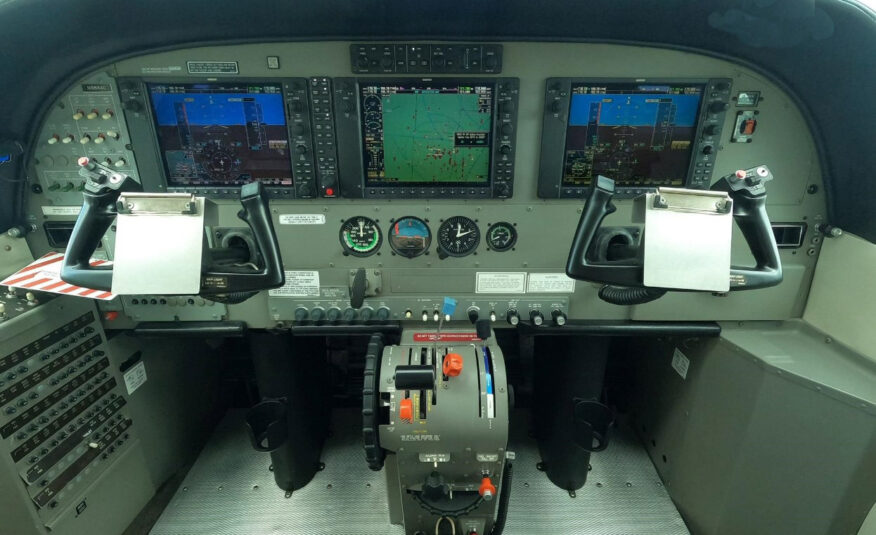

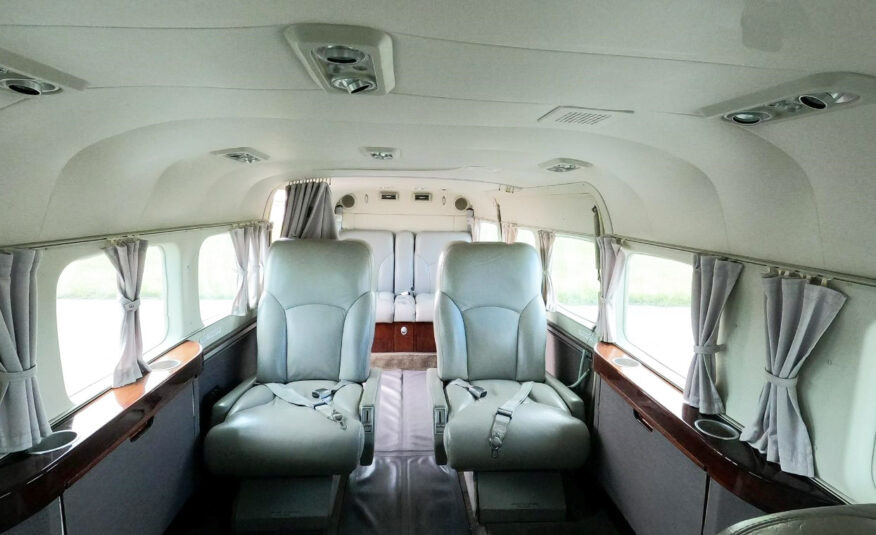

Cessna Grand Caravan w/G1000 and Yingling's Oasis Executive interior. Always hangared and professionally flown. Current on Pratt & Whitney's ESP Gold engine program. Recent prop overhaul. APE Kit II installed (max take off weight increase). No know damage history with complete logs.

ADS-B Equipped
WAAS
SVT

A aeronave acima é de terceiros, os dados estão sujeitos a verificação.

DIMENSIONS

Length	41 ft 7 in (12.7 m)
Height	15 ft 6 in (4.7 m)
Wingspan	52 ft 1 in (15.9 m)
Wing Area	279 sq ft (25.96 sq m)
Wheelbase	13 ft 4 in (4.05 m)
Tread	11 ft 8 in (3.56 m)

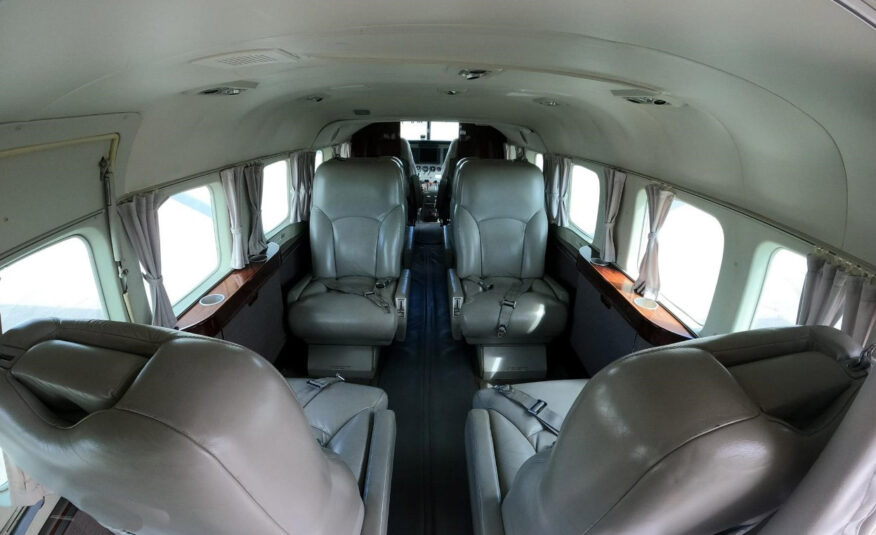

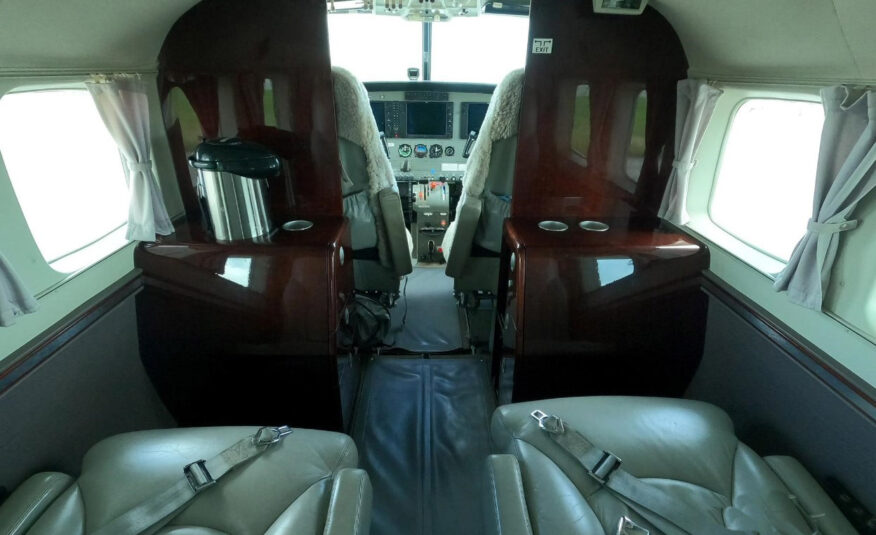

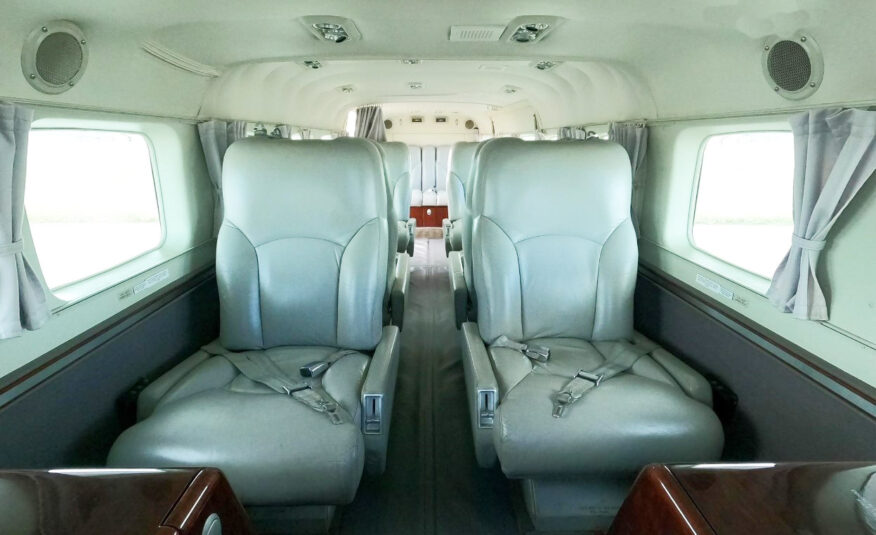

CABIN INTERIOR

Height	54 in (1.37 m)
Width	64 in (1.63 m)
Length	21 ft 4 in (6.50 m)
Maximum Occupants	10 - 14

BAGGAGE CAPACITY

Weight	1,410 lb (640 kg)
Volume	143 cu ft (4.05 cu m)

WEIGHTS

Maximum Ramp Weight	8,842 lb (4,011 kg)
Maximum Takeoff Weight	8,807 lb (3,995 kg)
Maximum Landing Weight	8,500 lb (3,856 kg)
Usable Fuel Weight	2,246 lb (1,019 kg)
Usable Fuel Volume	335 gal (1,269 l)
Basic Empty Weight	5,310 lb (2,409 kg)
Useful Load	3,532 lb (1,602 kg)
Maximum Payload	3,190 lb (1,447 kg)
Full Fuel Payload	1,286 lb (583 kg)

PERFORMANCE

Maximum Cruise Speed	185 ktas (343 km/h)
Maximum Range	912 nm (1,689 km)
Takeoff Distance	2,160 ft (658 m)
Takeoff Ground Roll	1,399 ft (426 m)
Landing Distance	1,836 ft (560 m)
Landing Ground Roll	1,004 ft (306 m)
Maximum Operating Altitude	25,000 ft (7,620 m)
Maximum Climb Rate	1,275 fpm (389 mpm)

POWERPLANT

Manufacturer	Pratt & Whitney Canada
Model	PT6A-140
Power Rating	867 shp (647 kw)
Propeller Manufacturer	McCauley
Description	4 blade aluminum, constant speed, full feathering
