Detalhes da aeronave

Cessna Grand Caravan EX – Ano 2015 – 570 Horas Totais

Add to compare

Visão geral
Especificações técnicas

Ex Works

Valor de venda + impostos para nacionalização

• No Damage History
• ProParts prepaid until 2/25/21 or 734 Hrs
• Garmin Avionics Warranty until 2/25/21
• Engine Warranty extended until 2/25/21 or 2500 Hrs

Engine:

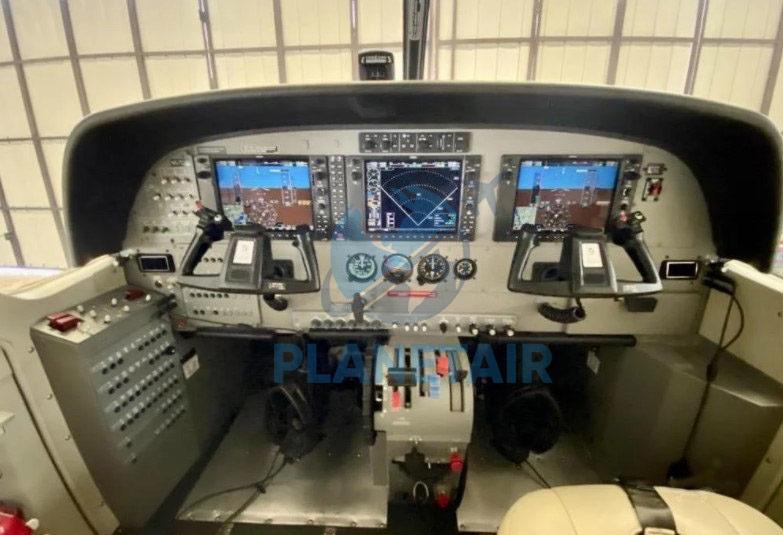

Garmin G1000 All Glass Avionics System includes:
• Synthetic Vision Technology (SVT)
• King KN-63 DME
• GTX 33 Mode S Transponder
• GDU1040 Pilot & Co-Pilot Primary Flight Display (PFD)
• GMA 1347 Single Audio System with Integrated Marker Beacon Receiver
• GDU 1040A Multi-Function Display (MFD)
• GDC 74A Dual Air Data Computer (ADC)
• GEA 71 Engine/Airframe Unit
• GIA 63W Dual Integrated Avionics Unit (Includes Comm, Nav, GPS)
• GRS 77 Dual Attitude and Heading Reference System (AHRS)
• GMC 710 Autopilot Mode Controller
• GSA 80/81 Servo Actuators with GSM 86 Servo Mounts
• Garmin Relative Terrain/Obstacles
• Garmin Flight Charts Capable
• Garmin Safe Taxi Capable
• Switch, Avionics Power (Two) (On-Off)
• Avionics Cooling, (2) cowl deck fans and (3) display fans
• PA System with Aft Cabin Speakers
• KR-87 ADF Displayed on PFD w/ Stand Alone Control

Equipamentos Adicionais:

$450K+ in Options
ADS-B Out (to be installed before delivery)
13 Place Commuter Interior Configuration ($79K)
Garmin GWX 68 - 4 Color Digital Weather Radar ($30K)
KTA 870 Traffic Advisory System ($28K)
TAWS-B Garmin ($15K)
C 406-N 3 Frequency ELT ($14K)
300 AMP Starter/Generator ($7K)
A/C Cabin System ($47K)
Complete 17 Port Oxygen System ($21K)
29” Tires ($2K)
Cargo Pod With Exhaust Deflector ($86K)
Synthetic Vision Technology (SVT) ($28K)
L-3 Communications Stormscope Model WX-500 ($12K)
Jeppesen Chart View (Exchange for Garmin Flight Charts) ($6K)
4-blade Propeller Upgrade ($75K)
Wing Tips Painted Blue
Teflon Coating for Cargo Pod
12V Power Outlets in Cabin (2)

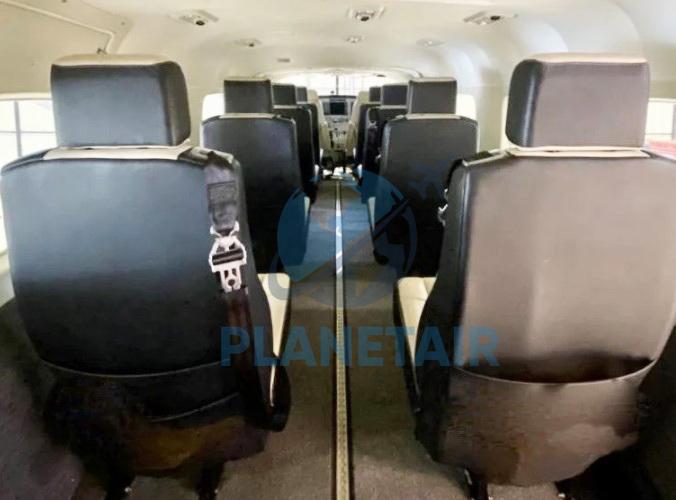

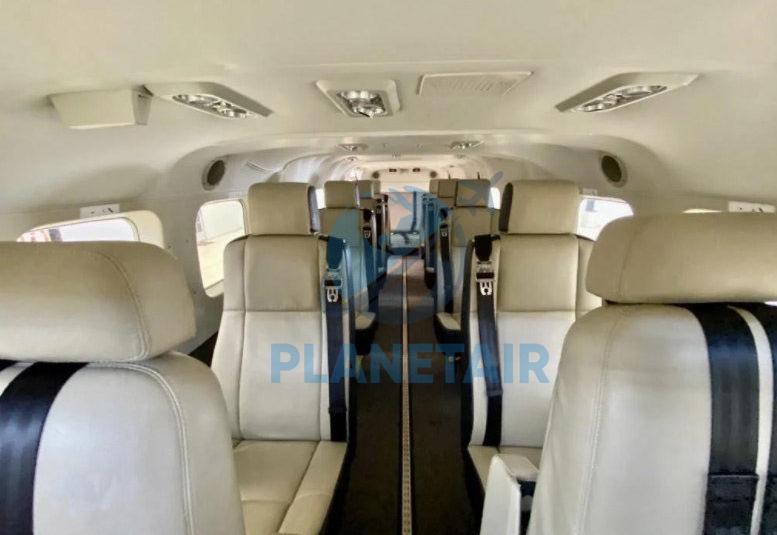

Interior:

Canyon Group Interior
13 Place Commuter Configuration
2 front pilots seats, 8 individual passenger seats looking
forward, and a 3-place aft divan facing forward
12V Power Outlets (2)
Air Conditioning cabin system
Complete 17 Port Oxygen System

A aeronave acima é de terceiros, os dados estão sujeitos a verificação.

DIMENSIONS

Length	41 ft 7 in (12.7 m)
Height	15 ft 6 in (4.7 m)
Wingspan	52 ft 1 in (15.9 m)
Wing Area	279 sq ft (25.96 sq m)
Wheelbase	13 ft 4 in (4.05 m)
Tread	11 ft 8 in (3.56 m)

CABIN INTERIOR

Height	54 in (1.37 m)
Width	64 in (1.63 m)
Length	21 ft 4 in (6.50 m)
Maximum Occupants	10 - 14

BAGGAGE CAPACITY

Weight	1,410 lb (640 kg)
Volume	143 cu ft (4.05 cu m)

WEIGHTS

Maximum Ramp Weight	8,842 lb (4,011 kg)
Maximum Takeoff Weight	8,807 lb (3,995 kg)
Maximum Landing Weight	8,500 lb (3,856 kg)
Usable Fuel Weight	2,246 lb (1,019 kg)
Usable Fuel Volume	335 gal (1,269 l)
Basic Empty Weight	5,310 lb (2,409 kg)
Useful Load	3,532 lb (1,602 kg)
Maximum Payload	3,190 lb (1,447 kg)
Full Fuel Payload	1,286 lb (583 kg)

PERFORMANCE

Maximum Cruise Speed	185 ktas (343 km/h)
Maximum Range	912 nm (1,689 km)
Takeoff Distance	2,160 ft (658 m)
Takeoff Ground Roll	1,399 ft (426 m)
Landing Distance	1,836 ft (560 m)
Landing Ground Roll	1,004 ft (306 m)
Maximum Operating Altitude	25,000 ft (7,620 m)
Maximum Climb Rate	1,275 fpm (389 mpm)

POWERPLANT

Manufacturer	Pratt & Whitney Canada
Model	PT6A-140
Power Rating	867 shp (647 kw)
Propeller Manufacturer	McCauley
Description	4 blade aluminum, constant speed, full feathering
