Detalhes da aeronave
Dassault Falcon 50EX – Ano 1999 – 8.133 H.T.
- Ex-works
- Valor de venda + impostos para nacionalização.
Airframe
- Total Time: 8,133.1
- Total Landings: 4,760
- CAMP Maintenance Tracking
- Upon Request
Engines
- Total Time: 7,972.8 / 8000.8
- Total Cycles: 2,616 / 2,616
- *MSP Gold Program
- APU
- Total Time: 3,187

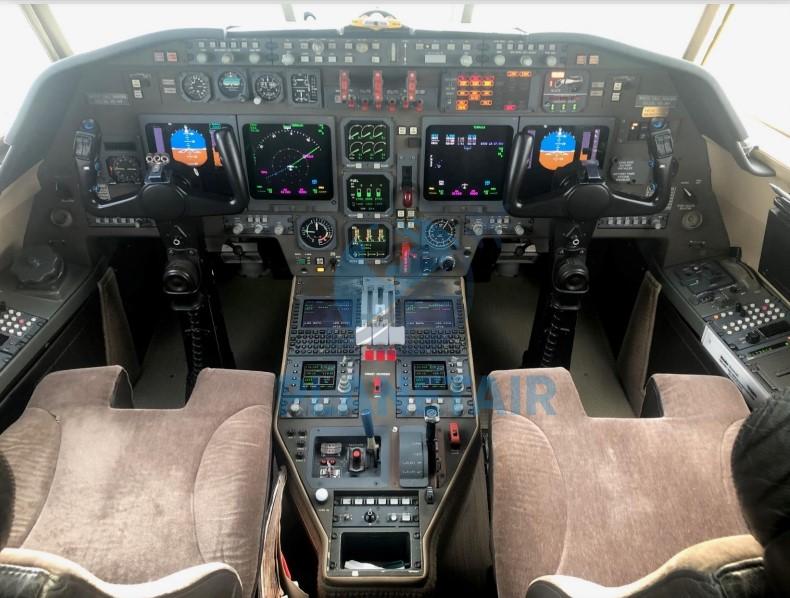

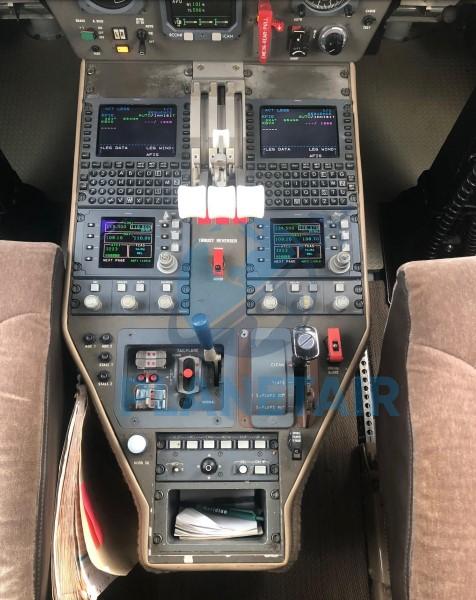

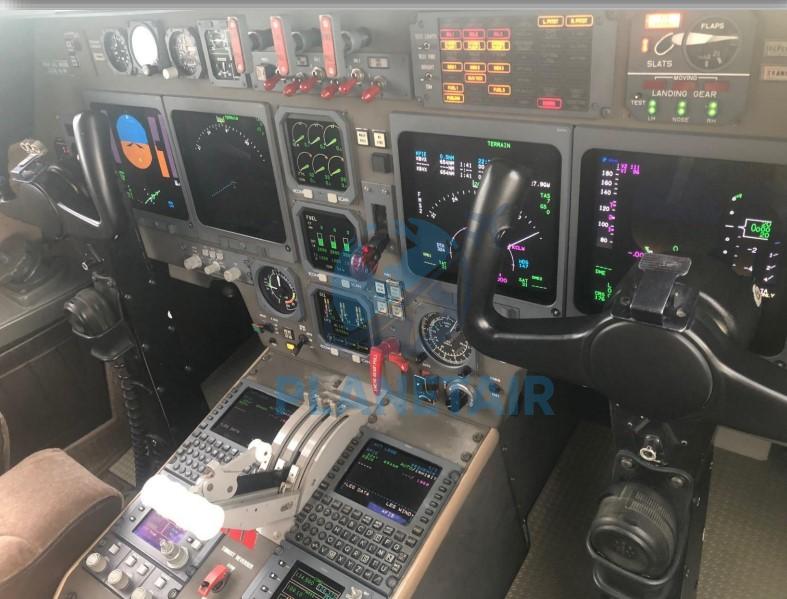

Avionics
- MSP Gold Program
- Four Tube EDS/Collins ProLine IV
- Triple Collins CHF-422 COMMS
- Dual Collins DME-442 DME
- Dual Collins TDR-94D TDR
- Collins TWR-850 Radar
- Dual Collins FMS-6000 FMS
- Dual Collins GPS-4000 GPS
- 2 Honeywell LASEREF III Inertial
- Dual Collins HF-9000 W/SELCAL HF
- Dual Collins VIR-432 NAV'S
- Dual Collins ADF-462 ADF
- Collins TCAS94 w/Change 7 TCAS
- Allied Signal AFIS
- Honeywell MARK V EGPWS
- Allied Signal CVR
- Allied Signal SS Flight Recorder
- Collins APS-4000 Autopilot
Exterior

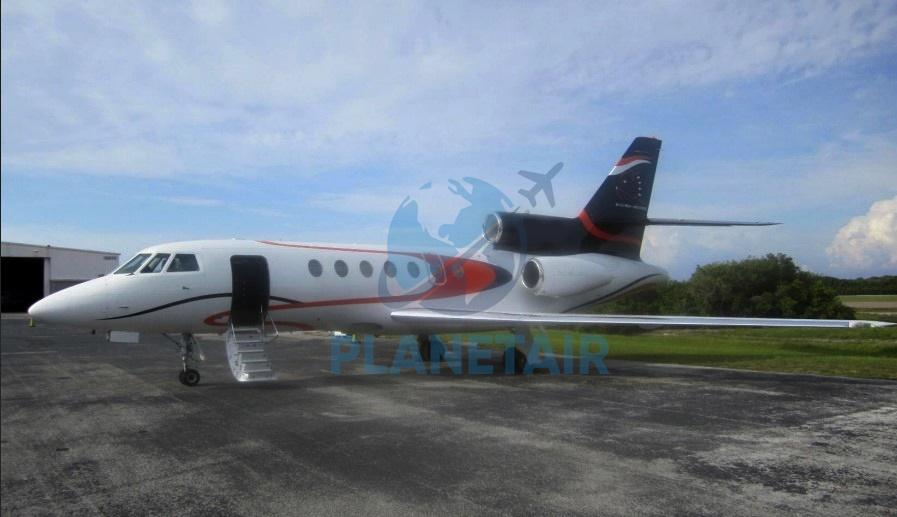

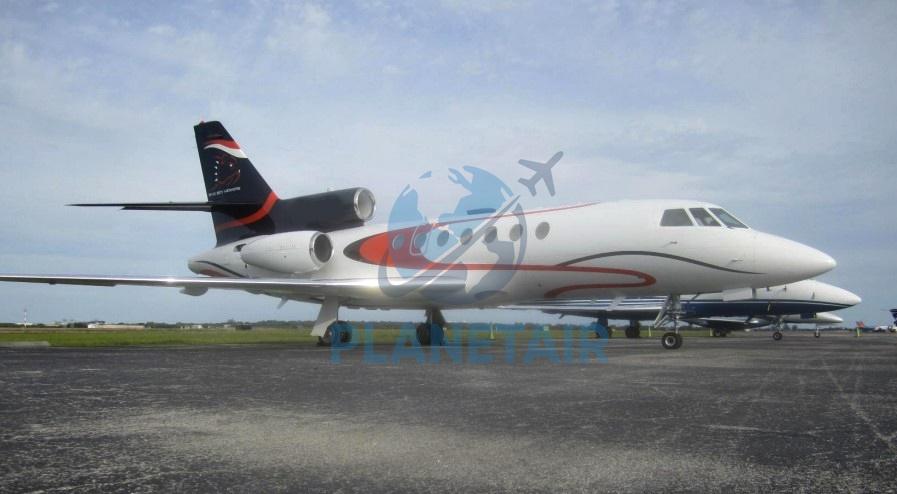

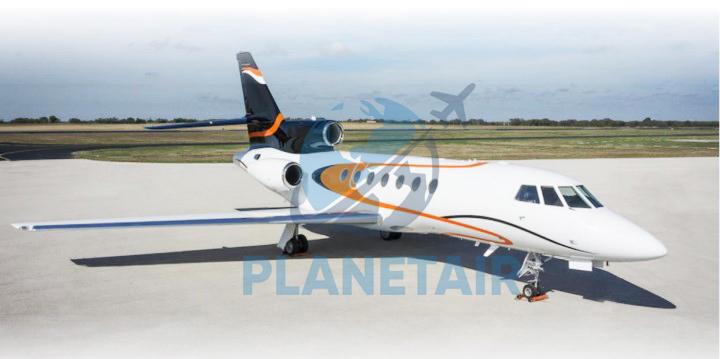

- Overall Matterhorn White with Silicone Specialties Orange, Black and Gamma
Gray accents.
Interior

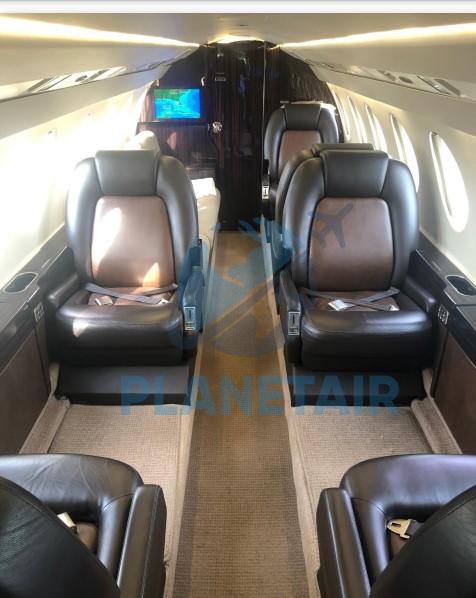

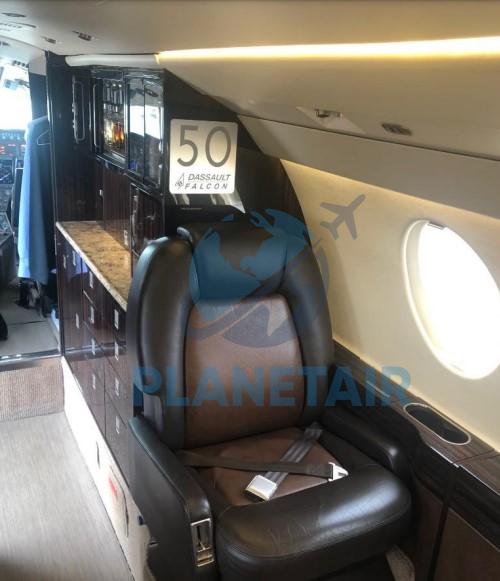

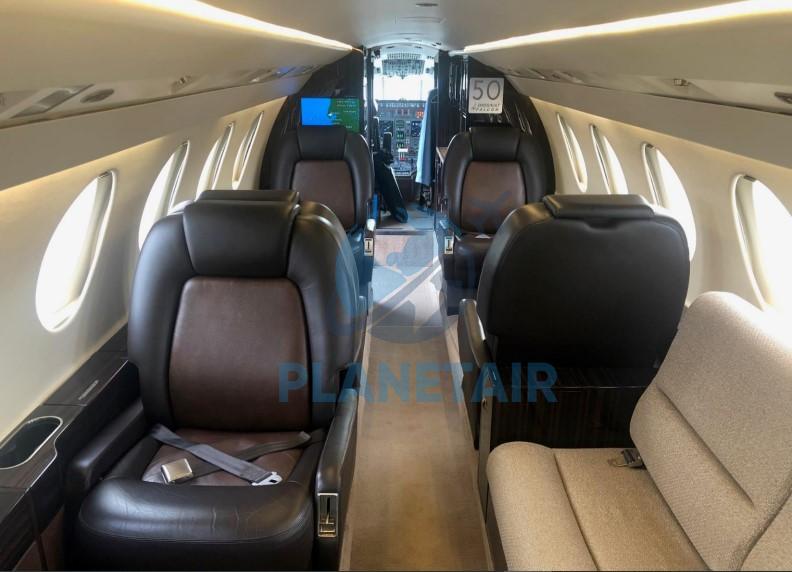

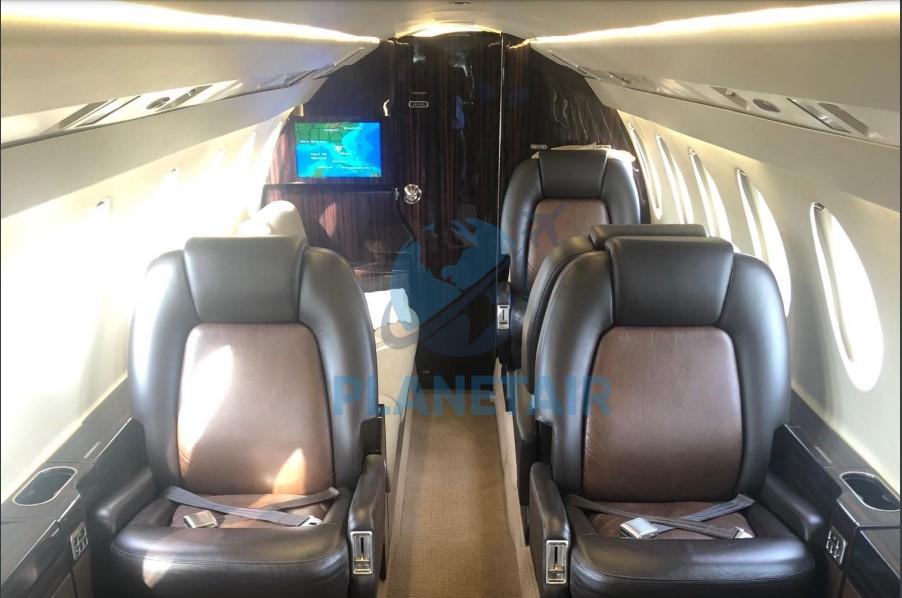

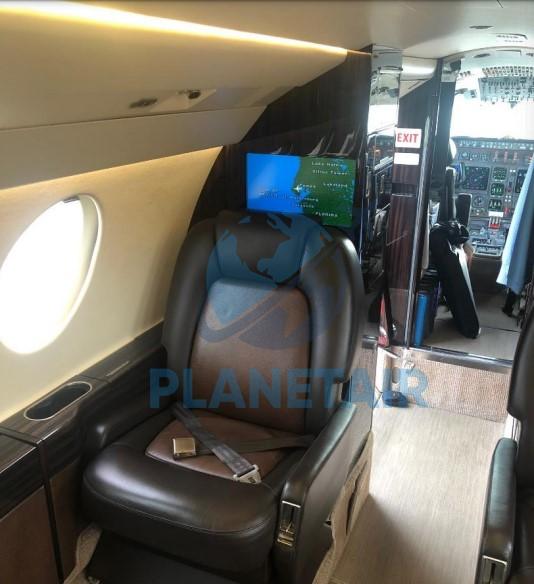

- Nine passenger executive interior features four club seats in the forward cabin in a
custom foam design, completed with Ascot Bittersweet leather and Stingray
embossed Shagarrett Beachwood leather inserts. Lower side panels and table
inserts are also covered with Stingray embossed Shagarrett Beechwood leather. Aft

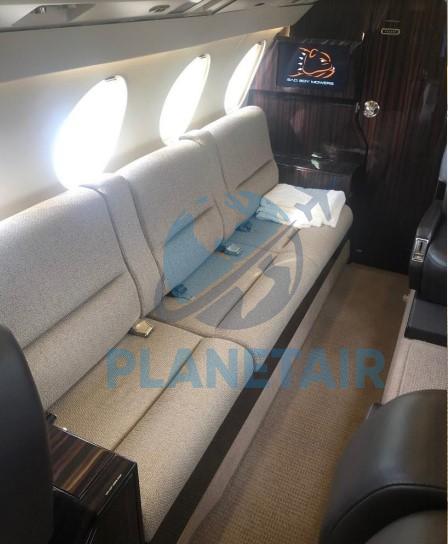

cabin features two additional custom club seats of the same design, opposite a

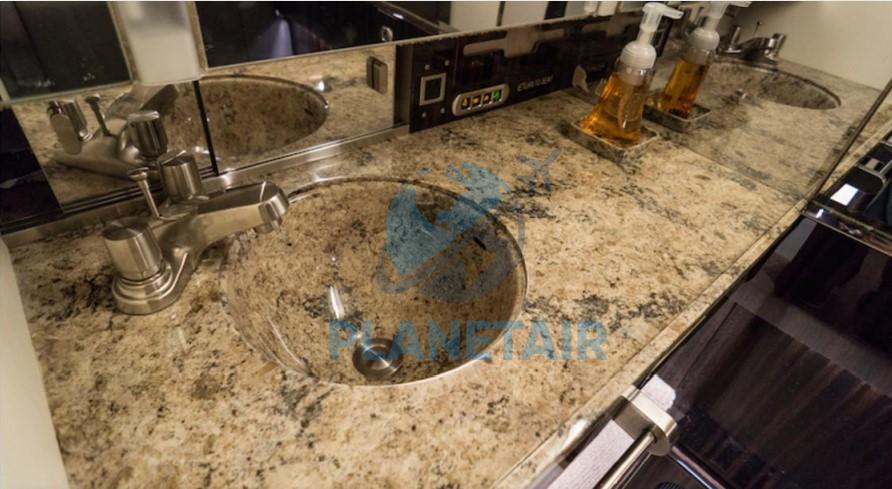

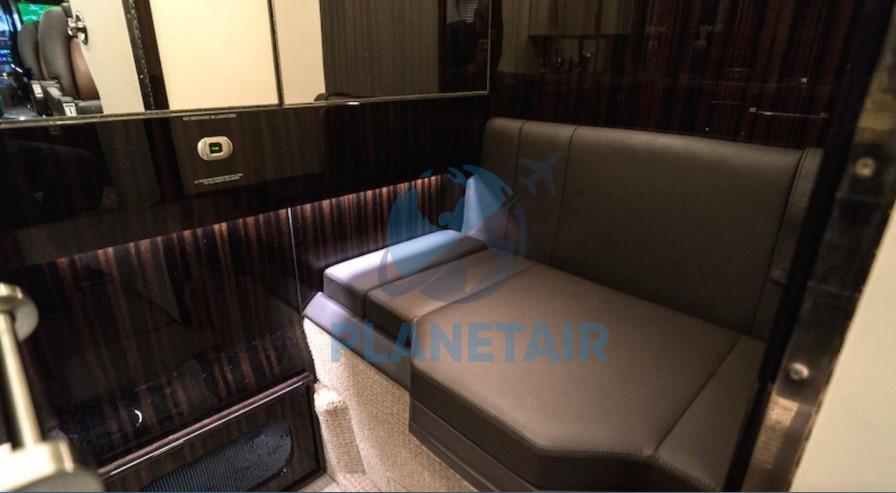

three-place sofa covered in custom truffle fabric, and aft lavatory with vanity.
Overtufted 100% custom wool carpet lays throughout the cabin, woodwork is

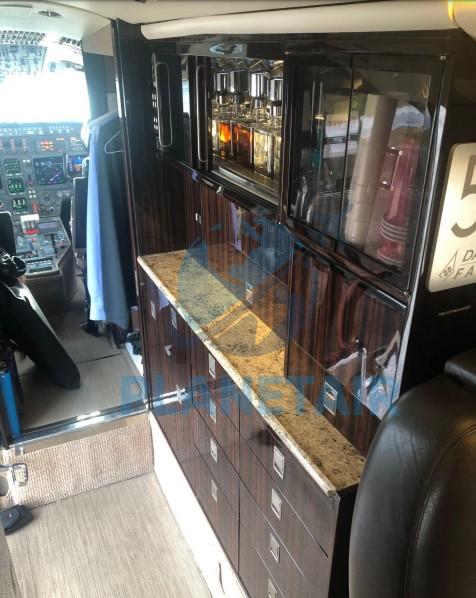

African Macssor Ebony Veneer. Forward galley features custom Quartz
countertops, TIA hot oven, coffee maker, and dual ice drawers.
A aeronave acima é de terceiros, os dados estão sujeitos a verificação.
Exterior
- Exterior Height: 22 ft 9 in
- Wing Span: 61 ft 8 in
- Length: 60 ft 8 in
- External Baggage: 90 cu ft
Interior
- Cabin Height: 5 ft 9 In
- Cabin Width: 6 ft 1 In
- Cabin Length: 22 ft 11 In
- Cabin Volume: 569 cu ft
- Internal Baggage: 25 cu ft
Occupancy
- Crew: 2
- Passengers: 9
Operating Weights
- Max T/O Weight: 39700 Lb
- Max Landing Weight: 35715 Lb
- Operating Weight: 22250 Lb
- Fuel Capacity: 15520 lbs Lb
- Payload W/Full Fuel: 2130 Lb
- Max Payload: 3320 Lb
Range
- Normal Range: 3260 nm
- Max Range: 3388 nm
- Service Ceiling: 49000 ft
Distances
- Takeoff Distance: 4935 ft
- Balanced Field Length: 5000 ft
- Landing Distance: 3500 ft
Performance
- Rate of Climb: 3515 fpm
- Climb Rate One Engine Inop: 671 fpm
- Max Speed: 480 kts
- Normal Cruise: 459 kts
- Economy Cruise: 430 kts
- Cost per Hour: $ 3,907
Power Plant
- Engines: 3
- Engine Mfg: Honeywell Engines
- Engine Model: TFE 731-40
