Detalhes da aeronave
GULFSTREAM G280 – ANO 2019 – 954 H.T.
Ex Works
Valor de venda + impostos para nacionalização
Airframe
- Total Time 954
- Total Landings 624
- Airframe Notes Certificate of airworthiness: October 18, 2018 Entry into service: February 8, 2019
Engine 1
- Engine 1 Make/Model HONEYWELL AS907-2-1G
- Engine 1 Time 974 SNEW
- Engine 1 Cycles 635
- Engine 1 TBO 5,000
Engine 2
- Engine 2 Make/Model HONEYWELL AS907-2-1G
- Engine 2 Time 974 SNEW
- Engine 2 Cycles 635
- Engine 2 TBO 5,000
Engine Program
- Engine Maintenance Program MSP Gold
Auxiliary Power Unit
- APU Time 882
- APU Maintenance Program MSP Gold
- APU Notes Honeywell GTCP36-150 S/N P-267
Avionics
- Flight Deck Manufacturer/Model GULFSTREAM PLANEVIEW
Avionics/Radios

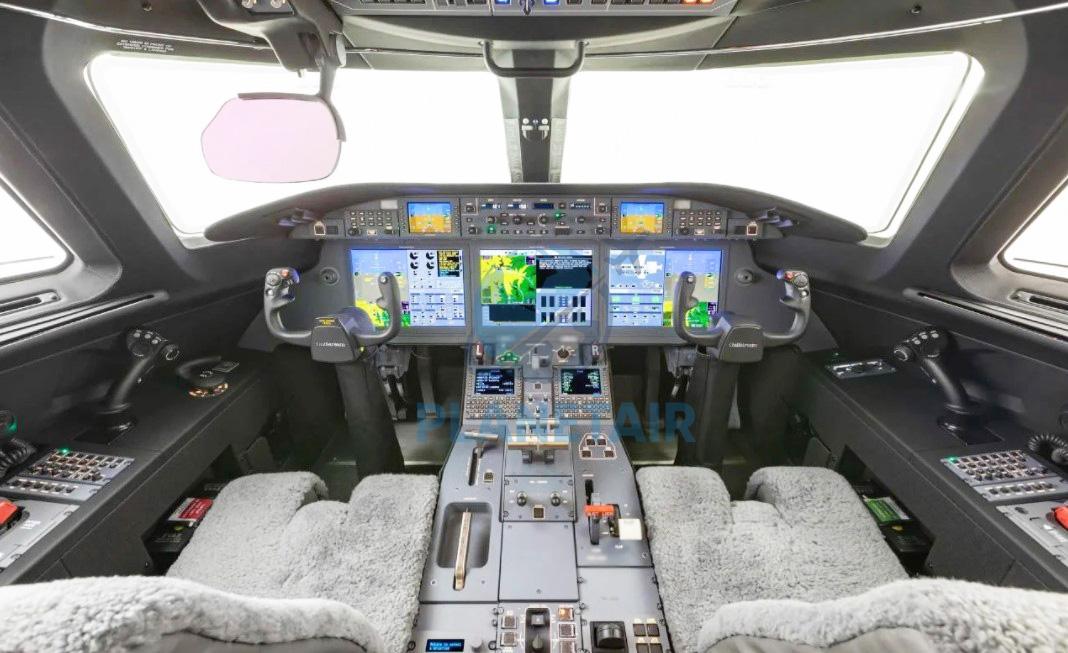

- Gulfstream PlaneViewTM Flight Deck
- 3 Pro Line Fusion Flight Management System (FMS)
- 3 VHF NAVs
- 1 Automatic Direction Finder
- 3 VHF COMMs
- 2 Automatic Flight Guidance Systems
- 1 Electronic Charting System
- 2 Autothrottle Systems
- 2 HF COMM
- 2 Distance Measuring Equipment Transceivers
- 1 Radio Altimeters
- 1 Terrain Awareness Warning System
- 1 Multiscan Color Weather Radar
- 2 12-Channel GPS Receivers
- 1 Multipurpose Flight Recorder System FDR/CVR
- 1 Traffic Collision Avoidance with Transponder (MODE S), TCAS II Change 7.1
- 1 Emergency Locator Transmitter (ELT)
- 1 FANS-1A Data Link
- 2 Air Data Computers
- 2 Select Attitude Heading Reference Units
- 2 Dual Channel Data Concentrator Units
- 2 Standby Multifunction Controllers (Display Select Panel and Display Control Panel)
- 1 Onboard Maintenance System
Additional Equipment
- Wifi
- Micro Quick Access Recorder (QAR)
- HUD/EVS
- Gogo Biz Avance L5
- SwiftBroadband High Speed Data
- Dual Electronic Charts and Overlays
- Emergency Vision Assurance System
- (EVAS) XM Weather
- Link 2000+
- No. 2 Collins HF
- No. 2 Collins Univeral Data Link
- Steep Approach
Exterior
- Year Painted 2019
- Exterior Notes Matterhorn White upper fuselage, Aristo Blue lower fuselage with Orient Red and Soft Gray stripes
Interior
- Year Interior 2019
- Number of Seats 9
- Galley
- Galley Configuration
- Forward
- Lavatory
- Lavatory Configuration
- Aft

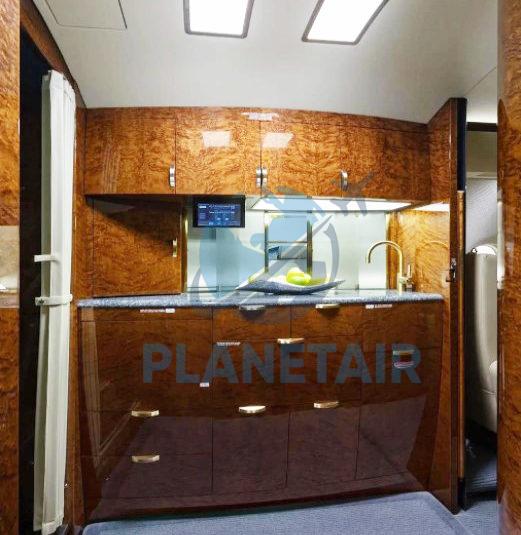

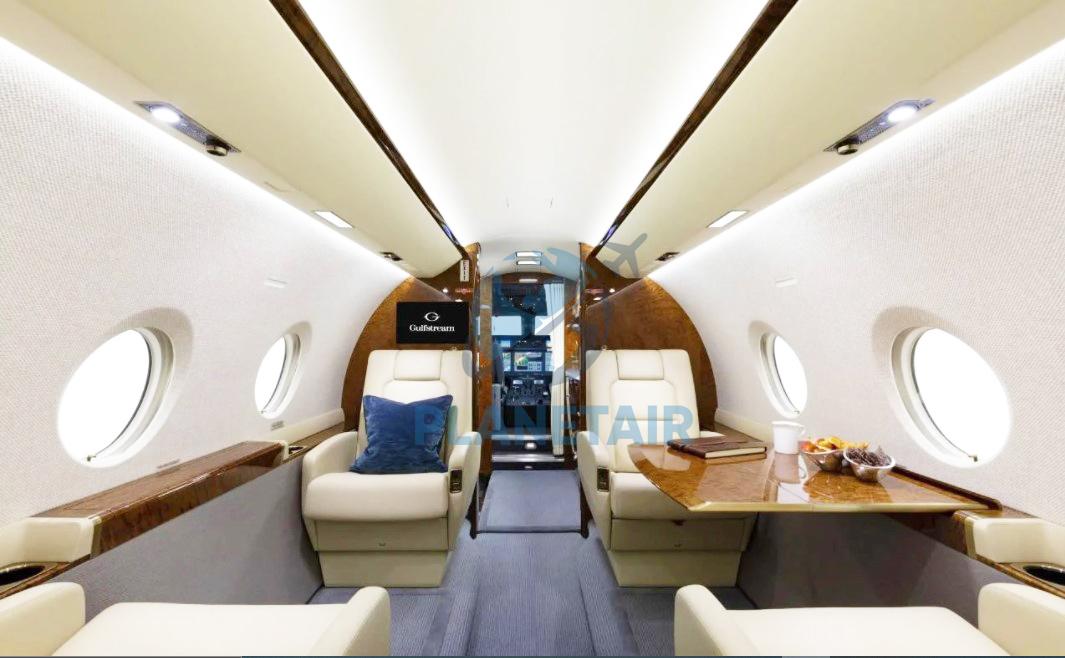

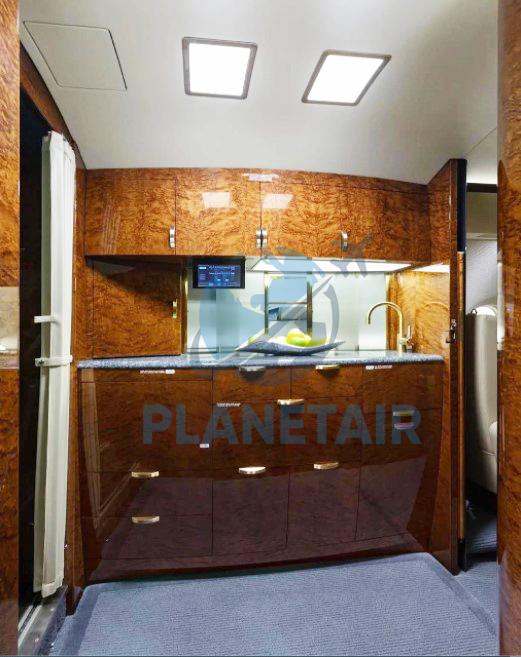

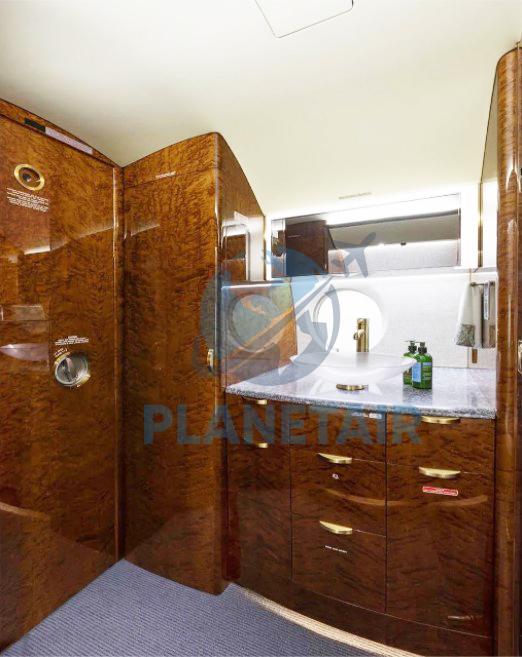

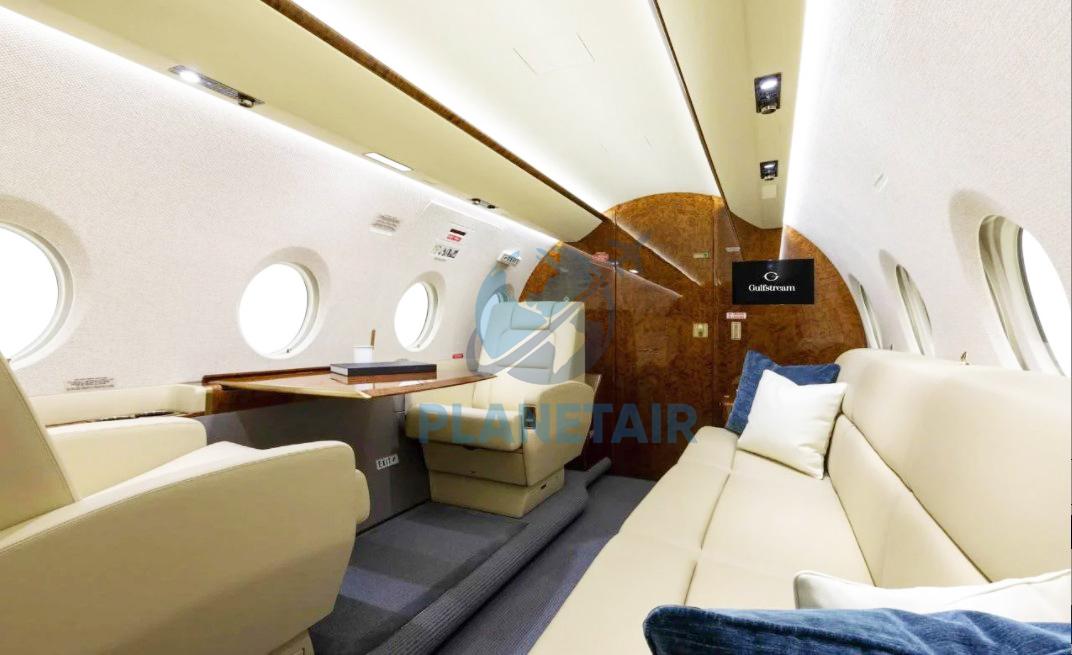

- Interior Notes Cabin layout: 9-passenger configuration Forward cabin: Four-single club seats and two executive tables Aft cabin: Three-place divan opposite two-single club seats with an executive table Galley: Galley includes a microwave oven, Keurig maker Lavatory: Aft passenger lavatory _____ Seats: Townsend leather, Classic Cowhide, White Smoke Divan: Townsend leather, Classic Cowhide, White Smoke Headliner/PSU: Izit Leather Classic, Oyster Countertops: Cambria, Parys, Natural Quartz Metal finish: Gold, Light Aged (Antique) Wood: Birdseye Maple Carpet: Scott Group, Corduroy Loop Upp _____ 19-inch HD LCD monitor in aft left-hand cabin bulkhead ICG Nxt-Link 220A Iridium Satcom 19-inch HD LCD monitor in forward left-hand cabin bulkhead Dual slot Blu ray DVD/CD player Audio/Video Distribution System (AVDS)
A aeronave acima é de terceiros, os dados estão sujeitos a verificação.
Exterior
- Exterior Height: 21 ft 4 in
- Wing Span: 63 ft 0 in
- Length: 66 ft 10 in
- External Baggage: 120 cu ft
Interior
- Cabin Height: 6 ft 3 In
- Cabin Width: 7 ft 2 In
- Cabin Length: 25 ft 10 In
- Cabin Volume: 935 cu ft
- Internal Baggage: 34 cu ft
Occupancy
- Crew: 2
- Passengers: 8-10
Operating Weights
- Max T/O Weight: 39600 Lb
- Max Landing Weight: 32700 Lb
- Operating Weight: 24150 Lb
- Empty Weight: 24150 Lb
- Fuel Capacity: 14600 lbs Lb
- Payload Useful: 15600 Lb
- Payload W/Full Fuel: 1000 Lb
- Max Payload: 4050 Lb
Range
- Normal Range: 3420 nm
- Max Range: 3600 nm
- Service Ceiling: 45000 ft
Distances
- Takeoff Distance: 4750 ft
- Balanced Field Length: 4800 ft
- Landing Distance: 2720 ft
Performance
- Rate of Climb: 5000 fpm
- Climb Rate One Engine Inop: 846 fpm
- Max Speed: 566 kts
- Normal Cruise: 470 kts
- Economy Cruise: 459 kts
- Cost per Hour: $ 3,220.88
- Avionics: PlaneView 280
- 2019 List Price: $24,500,000
Power Plant
- Engines: 2
- Engine Mfg: Honeywell Engines
- Engine Model: HTF7250G
