Detalhes da aeronave

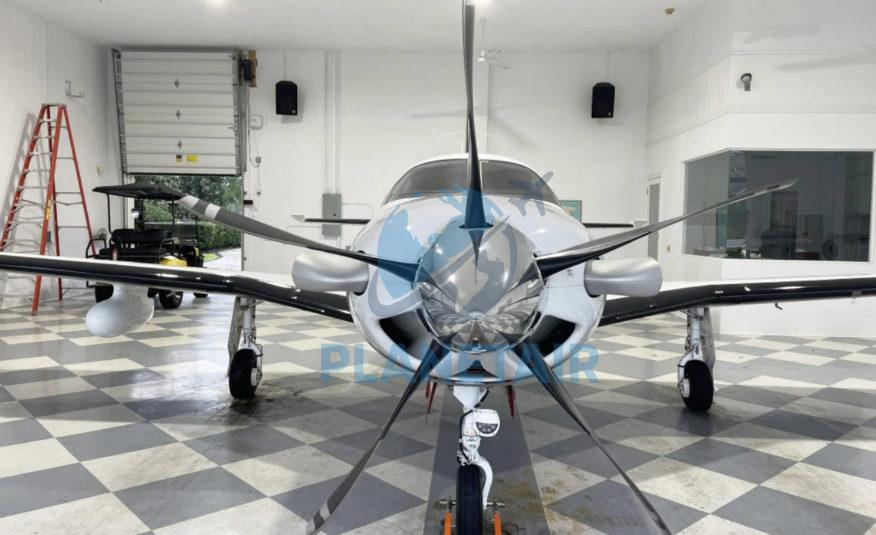

Piper Meridian M500 PA-46-500TP – Ano 2016 – 930 H.T. *Ex-works

Add to compare

Visão geral
Especificações técnicas

Ex Works

Valor de venda + impostos para nacionalização

Equipamentos:

Garmin G1000 Avionics Suite
Synthetic Vision Technology (SVT)
Pilot and Co-Pilot 10.4” PFDs 12.4” Multifunction Display
Dual GIA 63W NAV/COMS (WAAS Enabled)
GFC-700 Autopilot with Enhanced AFCS and GMC 710 Controller Integrated
Yaw Damper System
GWX 68 Weather
Radar GTX 33ES Transponder (ADS-B out capability) GCU 476 Keypad
Dual GDC 74A Air Data Computers
GMA 350 Audio Panel w. 3-D Audio
Aspen EFD 1000
Standby Flight Instruments Garmin FliteCharts and SafeTaxi Enviro
Digital Cabin Pressurization

Equipamentos Adicionais:

Premium Package 398 - Hartzell 5-Bladed Propeller 215 - 110 volt Power Outlet AMSAFE - AmSafe Seatbelts, Pilot / Co-pilot All Weather Package 269 - GDL 69A XM Radio /Weather w/ Remote 330 - WX-500 Stormscope Awareness Package 235 - Jeppesen ChartView 450 - TAWS-B 631 - GTX33 ES Second Transponder 825 - GTS 825 Traffic Advisory System Executive Inverness Interior

A aeronave acima é de terceiros, os dados estão sujeitos a verificação.

ENGINE
Pratt & Whitney Canada PT6A-42A
Horsepower: Flat Rated at 500 shp
TBO: 3,600 hours
Hot Section Inspection: 1,800 hours

PROPELLER
Hartzell 4-Blade | Constant Speed | Reversible
Diameter: 82 in | 208 cm

WEIGHTS
Maximum Takeoff Weight: 5,092 lbs | 2,310 kg
Maximum Ramp Weight: 5,134 lbs | 2,329 kg
Standard Equipped Weight: 3,436 lbs | 1,559 kg
Standard Useful Load: 1,698 lbs | 770 kg

MAXIMUM CRUISE SPEED
260 ktas | 482 km/h

FUEL CAPACITY, USABLE
170 US gal | 644 liters

RANGE WITH 45 MINUTE RESERVE
1,000 nm | 1,852 km

MAXIMUM APPROVED ALTITUDE
30,000 ft | 9,144 m
For RVSM Airspace:
28,000 ft | 8,534 m

TAKEOFF DISTANCE
Ground Roll: 1,650 ft | 503 m
Total Over 50 ft Obstacle: 2,438 ft | 743 m

LANDING DISTANCE
Ground Roll: 1,020 ft | 311 m
Total Over 50 ft Obstacle: 2,110 ft | 643 m

CABIN PRESSURIZATION
Maximum Cabin Differential: 5.6 psi
